Export Graph of data using Espion software

1. There is a feature for loading and displaying results from other tests into a currently open test.

2. There is a graph export function to export an image of just the graph.

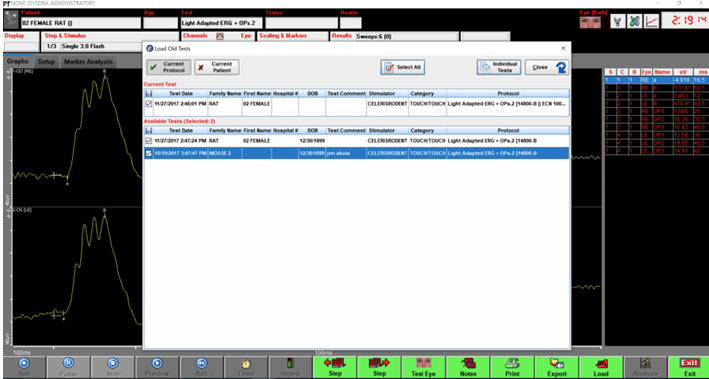

Open any test, Click on the load button at bottom right. Toggle "Current patient" off to see all tests performed by
the protocol used to collect the test you have open.

Select from available tests, checking on those you want to overlay. When ready click individual tests button.

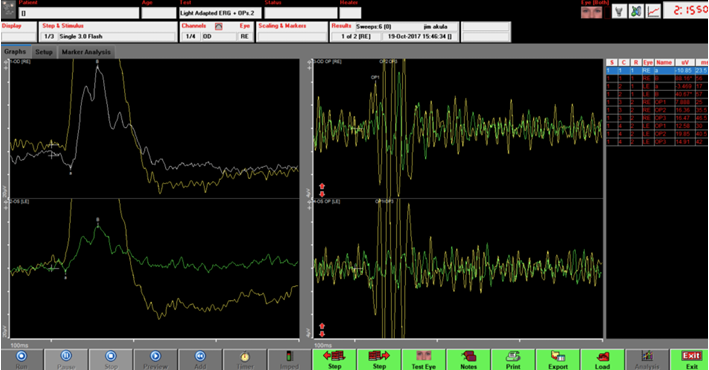

Depicted above is one additional test loaded into the currently open test. The results tab at the top will display information about the result I have currently selected. Note: The overlay is temporary and will not be saved when you exit the test.

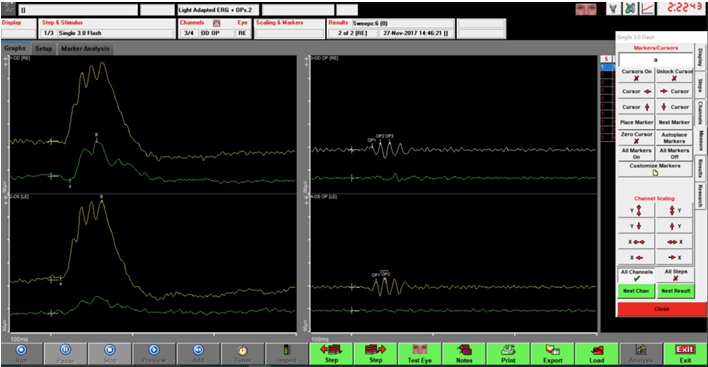

You can then use the channel scaling to adjust the graphs as needed. Click and drag on the curves to position them as needed. The Results tab along the top will indicate which result you have selected

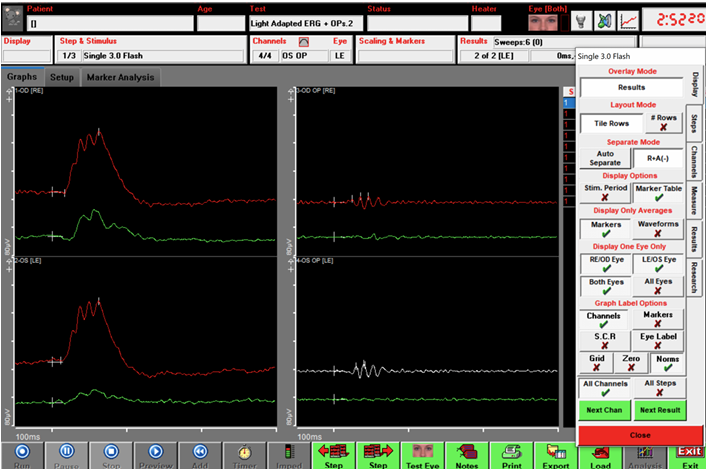

Uncheck Display only averages, markers, in Display tab to show markers on both selected and unselected result. Hide the markers by unchecking Markers in graph label options. Per eye color can be changed in results tab, color

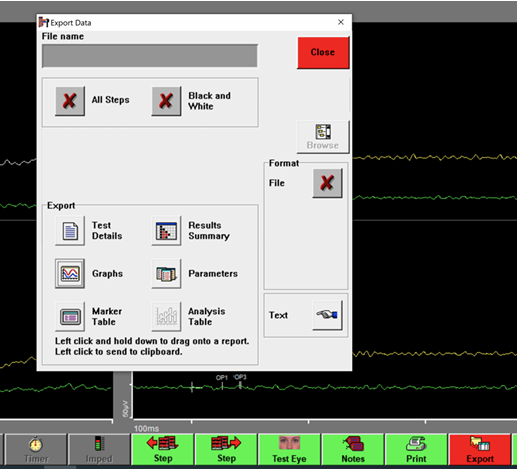

You can then export the waveforms using print to pdf, or export -> graphics -> graphs function. The graphs export function will use the windows clipboard to copy/paste an image of all channels of the current step you are looking at. You'll need an open word or excel document to drop the export into.

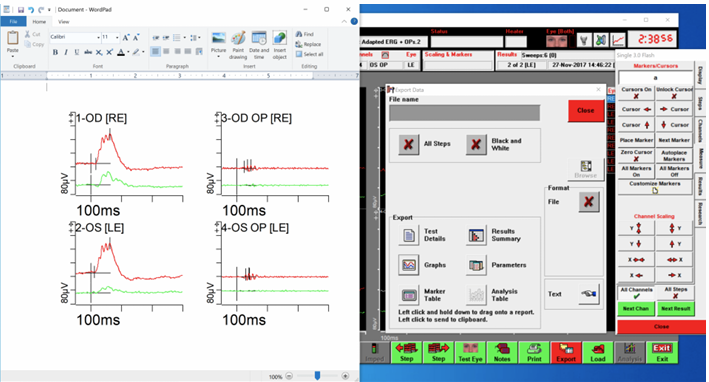

The image of the graphs is shown in the word document. This will get you an image of the curves you made previously with the data output to excel

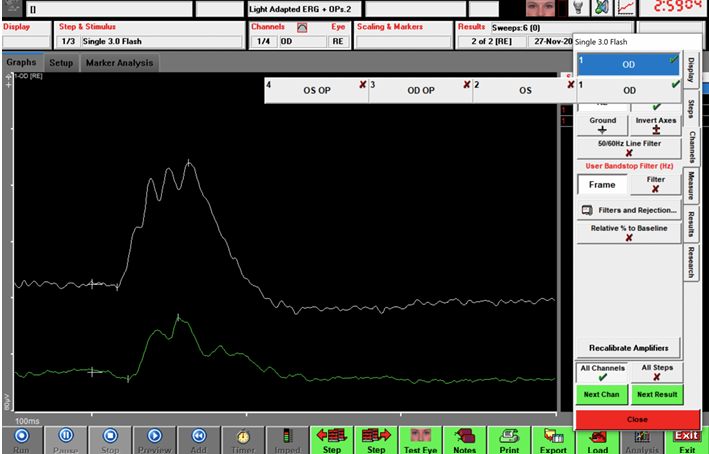

To get just one graph exported, RE ERG for example, uncheck "visible" button in channels tab for all channels except channel 1

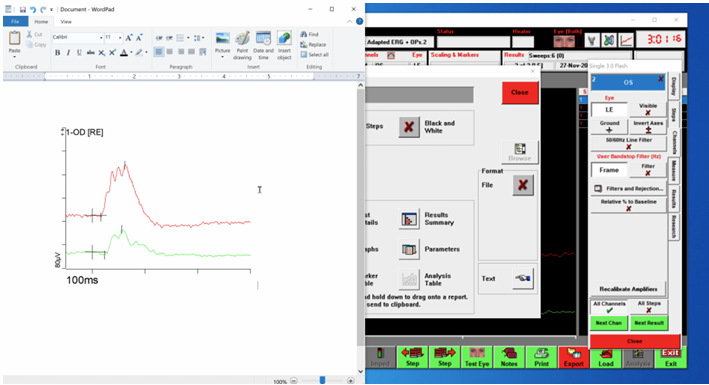

Then export the graph
